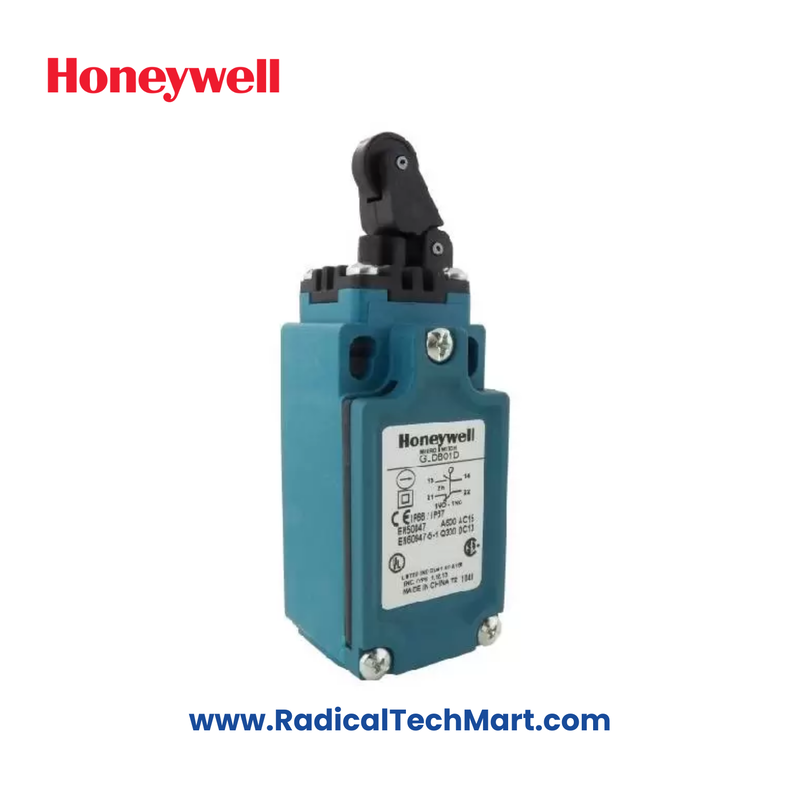

GLDB01D Honeywell Limit Switch

Key Features:

1. Actuators Options:

   • Side rotary
   • Top pin plunger
   • Top roller plunger
   • Top roller lever
   • Top wobble actuator

2. Termination Options:

   • 0.5-14 NPT
   • PG 13,5
   • 20 mm
   • PF 1/2
   • Deutsch-style 4-pin connector
     Other cable/connector options available (Contact Honeywell Representative).

3. Contact Options:

   • GLC Metal Housing & GLD Plastic Housing:
     • 1NC/1NO
     • 2NC
     • 2NO
   • GLE Metal Housing:
     • 1NC/1NO
     • 2NC
     • 2NO
     • 2NC/2NO

4. Contact Types:

   • Snap-action
   • Slow-action break-before-make (BBM)
   • Slow-action make-before-break (MBB)
   • Slow-action

5. Contact Material:

   • Silver (standard)
   • Gold-plated (low-energy applications)

Specifications:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV
• Sealing: NEMA 1, 4, 12, 13; IP66
• Operating Temperature Range: -40 °C to 85 °C [-40 °F to 185 °F]
• Mechanical Life: Up to 10 million cycles
• Pollution Code: 3
• Maximum Actuation Frequency:
  • 250 operations/minute (standard)
  • 100 operations/minute (wobbles)
• Shock Resistance: 50 g (per IEC 60068-2-27)
• Vibration Resistance: 10 g (per IEC 60068-2-6)

Approvals and Standards:

• Approvals: CE, UKCA, UL, CSA, CCC1
• Standards Compliance:
  • EN50047
  • IEC/EN 60947-5-1
  • CSA C22.2 #14
  • UL 508
  • CCC1 GB14048.5
  • EN45545-2 (GLC/GLE)
